University of Utah High-Rise Building

Part Louis Sullivan, part Ken Yeang.

Monday, June 14, 2010

Final Deflection Video

Final Member Sizes and Structure



We understand that even after three iterations, some of our members are still too big. We ended up having to add more columns in our skycourts in order to lessen some of the bending moments.

Re-Sizing Comparisons

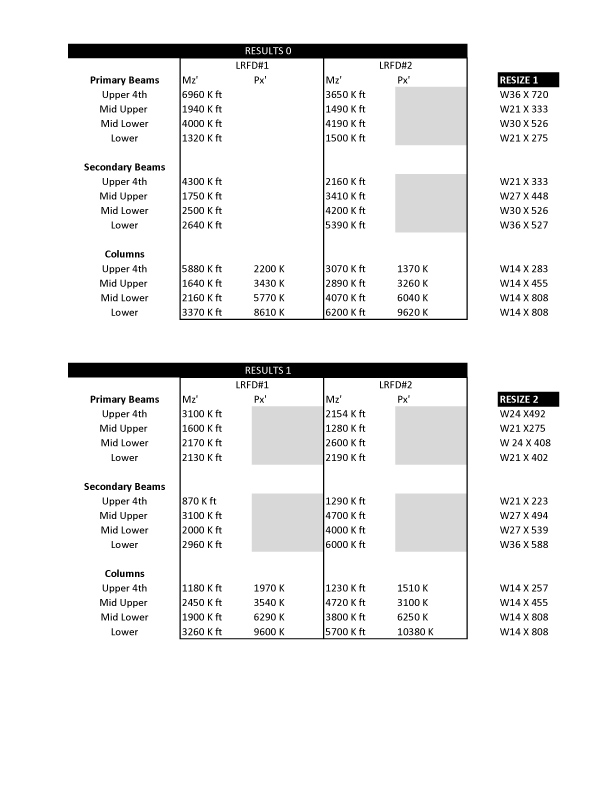

Re-Sizing Data




Thursday, June 3, 2010

Test Loading

Here the structure is loaded with 100 KIPS East.

The video shows the possible deflection of the members.

Tuesday, June 1, 2010

1st Iteration Structure

This iteration is without any loading. Loaded structure coming soon...

Monday, May 24, 2010

FINAL MODEL 1/16" = 1' : 0"

Our final model...
-Grand Corner Entrance
-235,000 Total Square Feet
-Height = 653 Feet
-40 levels, including street, 1st terrace, upper terrace and roof.
-Public Space - Street level to 2nd Level
-Office Space - 3rd to 32nd Level
-Residential Space - 33rd to 37th Level
-Public Roof Garden
-Full Glazing on East and North facades
-10 Skycourts/Communal Spaces
-Fully-operable, ventilation, sash walls on South facade
-Two multi-story wind scoops
-Solar Orientation
-Core Circulation on West Facade
-Vertical Landscaping
-Natural Lighting




Final Model FAR Calculations

FLOORS SQFT QTY. SQFT
Roof ~ 8100 1 8100
37 ~ 6500 1 6500
34, 35, 36 ~ 4600 3 13800
33 ~ 6500 1 6500
30, 31, 32 ~ 6000 3 18000
27, 28, 29 ~ 4700 3 14100
25, 26 ~ 7050 2 14100
21, 22, 23, 24 ~ 4650 4 18600
20 ~ 3500 1 3500
18, 19 ~ 6800 2 13600
14, 15, 16, 17 ~ 6500 4 26000
13 ~ 6800 1 6800
10, 11, 12 ~ 4700 3 14100
9 ~ 6500 1 6500
6, 7, 8 ~ 5100 3 15300
5 ~ 6300 1 6300
4 ~ 5500 1 5500
3 ~ 5400 1 5400
2 ~ 5100 1 5100
1 ~ 5000 1 5000
Lobby/ Plaza ~ 7200 1 7200
Stree/Retail/Plaza ~ 15000 1 15000



TOTAL SQFT 235,000

Final Model Floors Plans

FAR calculations

Lot size 160' x 100' =
16,000 sqft
FAR 15 16000 sqft x 15 =
240,000 sqft
Plaza
-5000 sqft

GROSS SQFT =
235,000 sqft




Floor Plan w/ Setbacks 60' x 120' =
7,200 sqft
# of Levels 235,000 sqft / 7200 sqft =
~ 32 Levels




















2nd Iteration

On this iteration we incorporated more of Ken Yeang's attributes...skycourts, lots of open communal space, tall ceilings, vertical landscaping, a light core, and topping it off with a green roof. We also took into consideration the solar/wind orientation, and seasonal change.

1st Massing Model Iteration

Our main concept was to incorporate a large wind gap that would allow natural ventilation. The gap is open from the South East to allow in the canyon winds.
